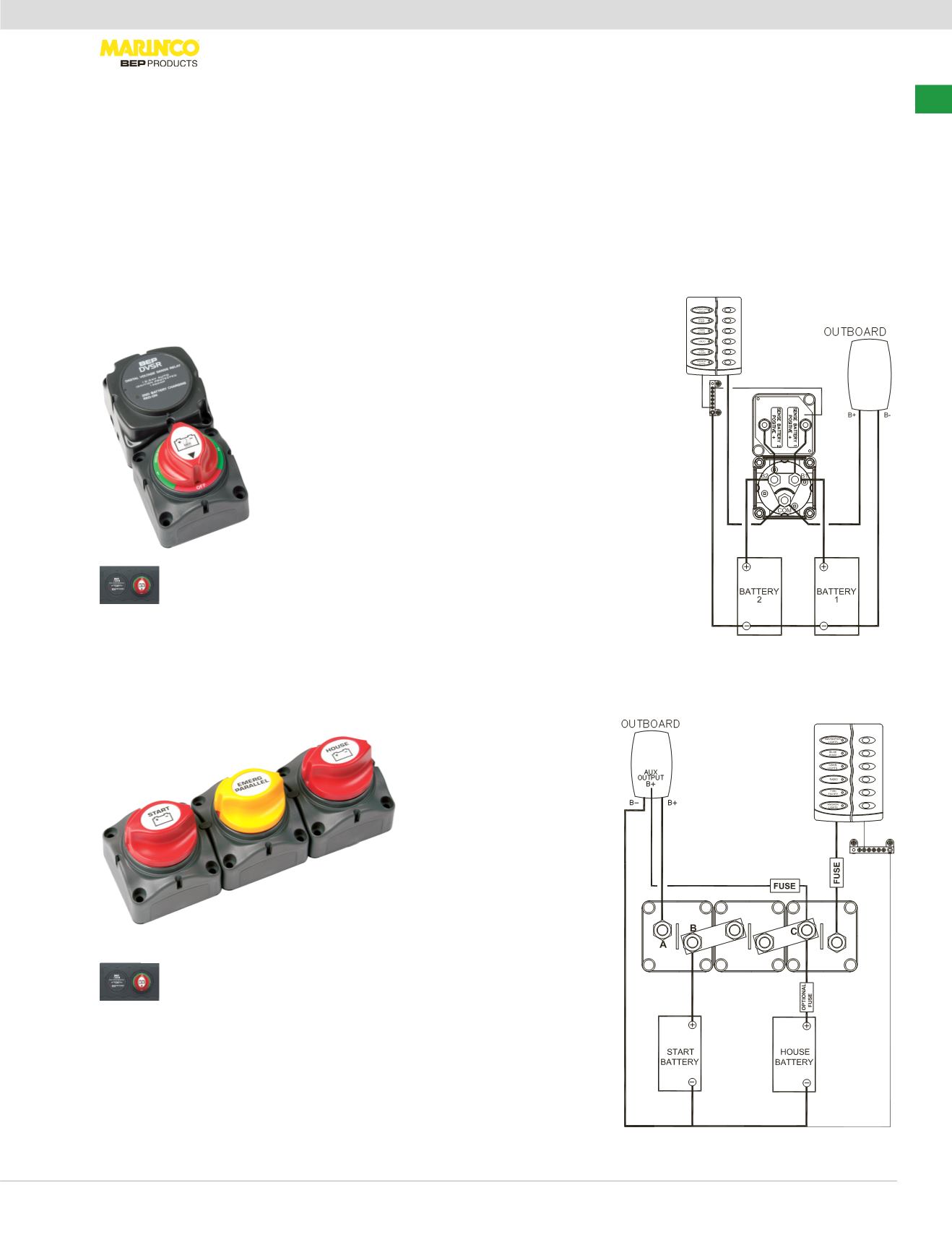

Battery Distribution Clusters
With the successful release of the BEP™ battery distribution system, BEP saw the need for ready assembled clusters for
different applications to make the installation within the battery area even easier. Following is the range as outlined in each
diagram, which are overviews only.
All clusters are completely bused and pre-wired internally and are supplied with mounting fastenings along with easy to
follow instructions. These include all connecting points clearly marked with ABC labels as shown in all illustrations.
All existing VSR enabled Battery Distribution Clusters now come standard with the new Digital Voltage Sensing
relays. Replace suffix "-100A" with "-140A-DVSR(-B)".
Single Engine, Two Battery Banks
The 714-140A-DVSR uses a dual sensing DVSR
(710-140A). This system ensures you will always have
a fully charged reserve battery. When the switch is in
position one, it becomes the sensing battery for the
VSR. Battery two, which is in isolation, will be charged
via the VSR when the engine is running ensuring it is
always fully charged. When the switch is in battery two
position, this becomes the sensing battery and battery
one is charged via the VSR. The fact that there is
always a fully charged battery in reserve is a huge
safety factor.
Please note:With the 714-140A-DVSR the electronic
loads are run off the same battery as the engine
starting battery.
Item # 714-140A-DVSR
OEM # 714-140A-DVSR-B
See table on following page for specifications
Now Incorporating
NEW Digital VSR
Single Engine Two Dedicated
Battery Banks
Available as Horizontal or Vertical units.
To be used in the following systems:
1) Single outboard dual battery bank
2) Single alternator dual battery bank
3) Twin alternator dual battery bank
Item # 715-V
See table on following page for
specifications
See pages 117 & 118
for panel versions
See pages 117 & 118
for panel versions
