Single Engine, Two Battery Banks
An ideal replacement for a Battery Selector Switch. Just remove
selector switch and connect existing wires to a 716 cluster, no extra
wires are required for a fully automatic battery management system.
No more flat start batteries.
Electronics protection from harmful engine start spikes.
The 716 cluster is for use on charging systems up to 150A.
To be used in the following systems:
1. Single outboard dual battery bank.
2. Single alternator inboard engine dual battery bank.
The 716 cluster replaces battery isolator systems.
For VSR operation, see page 110.

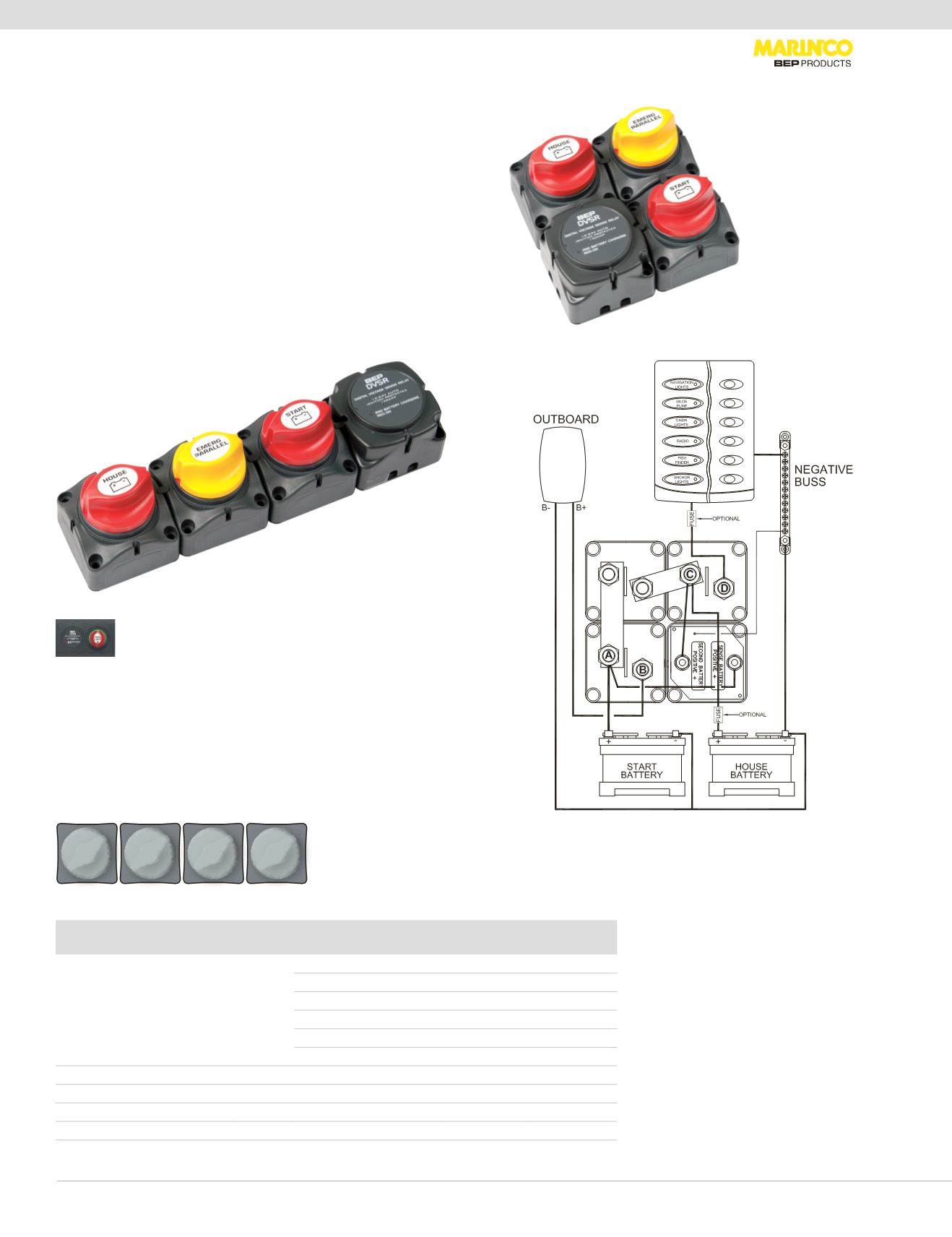

716-H-140A-DVSR
716-SQ-140A-DVSR
Dimension guide
Clusters are made from uniformly square
switches, each side 2.7" (69 mm)
Manage:
Battery Distribution Clusters
Engine type
Battery
(banks) Item #
in
LxWx3
mm
LxWx75
Single inboard or outboard 2
714-140A-DVSR
5.4"x2.75"
138x69
715-H
8.1"x2.75"
207x69
715-V
2.75"x8.1"
69x207
716-SQ-140A-DVSR
5.4"x5.4"
138x138
716-H-140A-DVSR
10.85"x2.75" 276x69
716-V-140A-DVSR
10.9"x2.7"
276x69
Twin inboard or outboard 2
715-S
8.1"x2.75"
210x69
Twin outboard
3
717-140A-DVSR
5.4"x8.1"
138x207
Twin inboard
3
718-140A-DVSR
8.1"x5.4"
207x138
Triple outboard
4
719-140A-DVSR
8.1"x 8.1"
207x207
VSR Charging Current: 125A continuous Battery Switch Rating: 275A continuous
