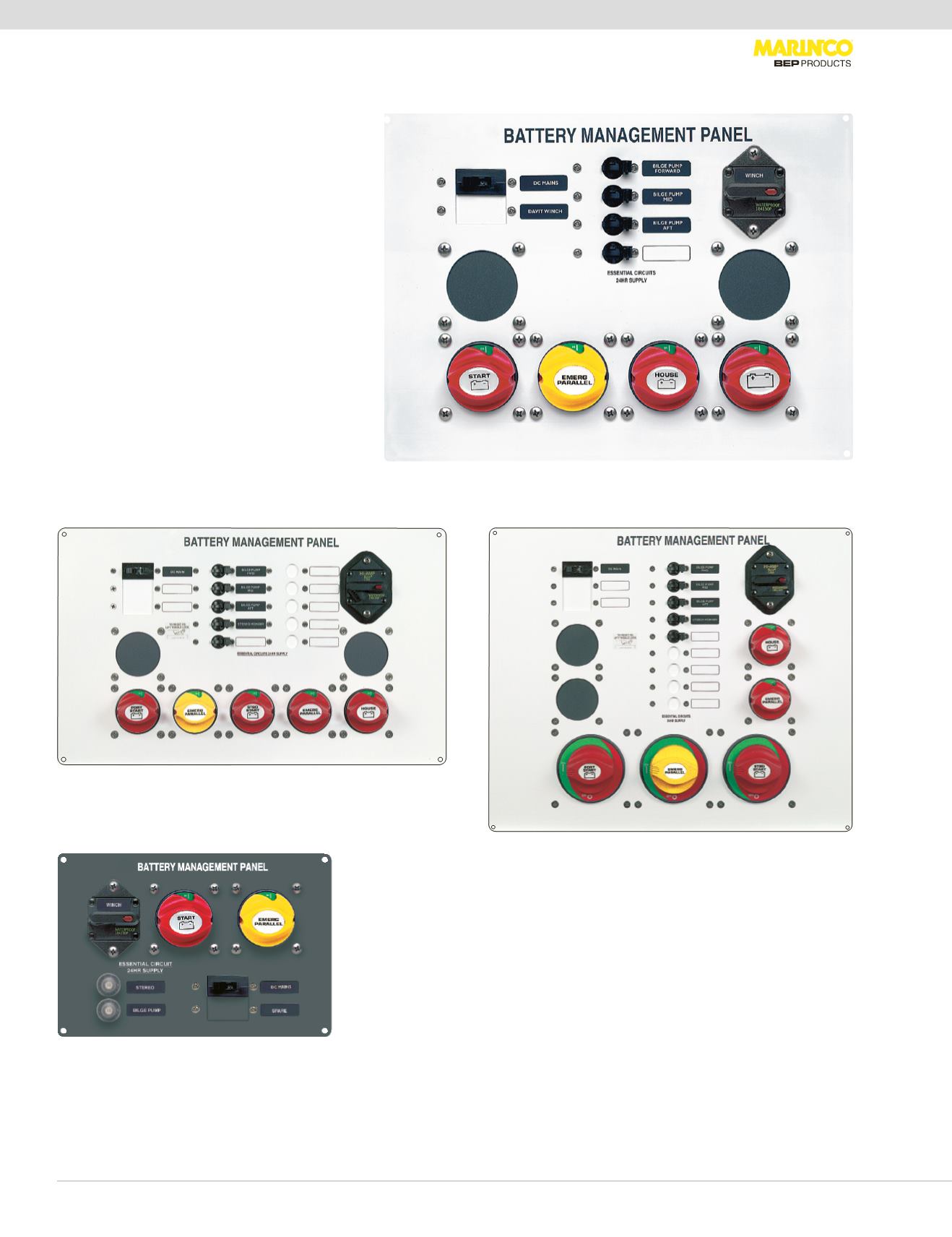

Battery Management Panels
• Essential circuits, 24 hour supply
• Mains breakers for control panels, davit
winches, or treatment systems
• Panels are supplied with a BEP™ 703-300A/B
heavy-duty negative bus, to accommodate all
the negative connections at the battery.
(Please note: 800-MS4 is supplied
with 702B negative stud)
• Heavy-duty breakers for anchor winches
• Powder coated aluminum panel
• Supplied with a full label set for panel circuit
breakers - Item # SET-MSP; additional label
sets available (see page 148)
• Spare positions for additional battery switches
and circuit breakers for extras such as radio
batteries and genset batteries
Item # 701
Battery switches to fit panel cutouts
Item # 713
Battery switch label sheet
Auxiliary Parts (ordered separately)
Item # CBL-50A-SP
50A
Item # CBL-75A-SP
75A
Item # CBL-100A-SP
100A
Circuit Breakers
For treatment systems, davit winches and sub‑mains.
800-MS1
The 800-MS1 panel is designed for power or sail boats between 10–12m
(32.9-39.5 ft) with single engines. 260x351x75 mm (10.25"x13.8"x2.9")
The 800-MS2 panel is designed for power boats between
10–12 m (32.9–39.5 ft) with twin engines.
281x463x75 mm (11.1"x18.25"x2.9")
800-MS2
The 800-MS3 panel is designed for power boats
between 12 –16 m (39.5 – 52.5 ft) with larger diesels.
380x463x95 mm (15"x18.25"x3.75")
800-MS3
The 800-MS4 panel is designed for sail boats up to 14 m
(46 ft) and power boats up to 10 m (32.9 ft) with single
engine. 160x239x75 mm (6.3"x9.4"x2.9")
800-MS4
Manage:
Battery Management Panels
