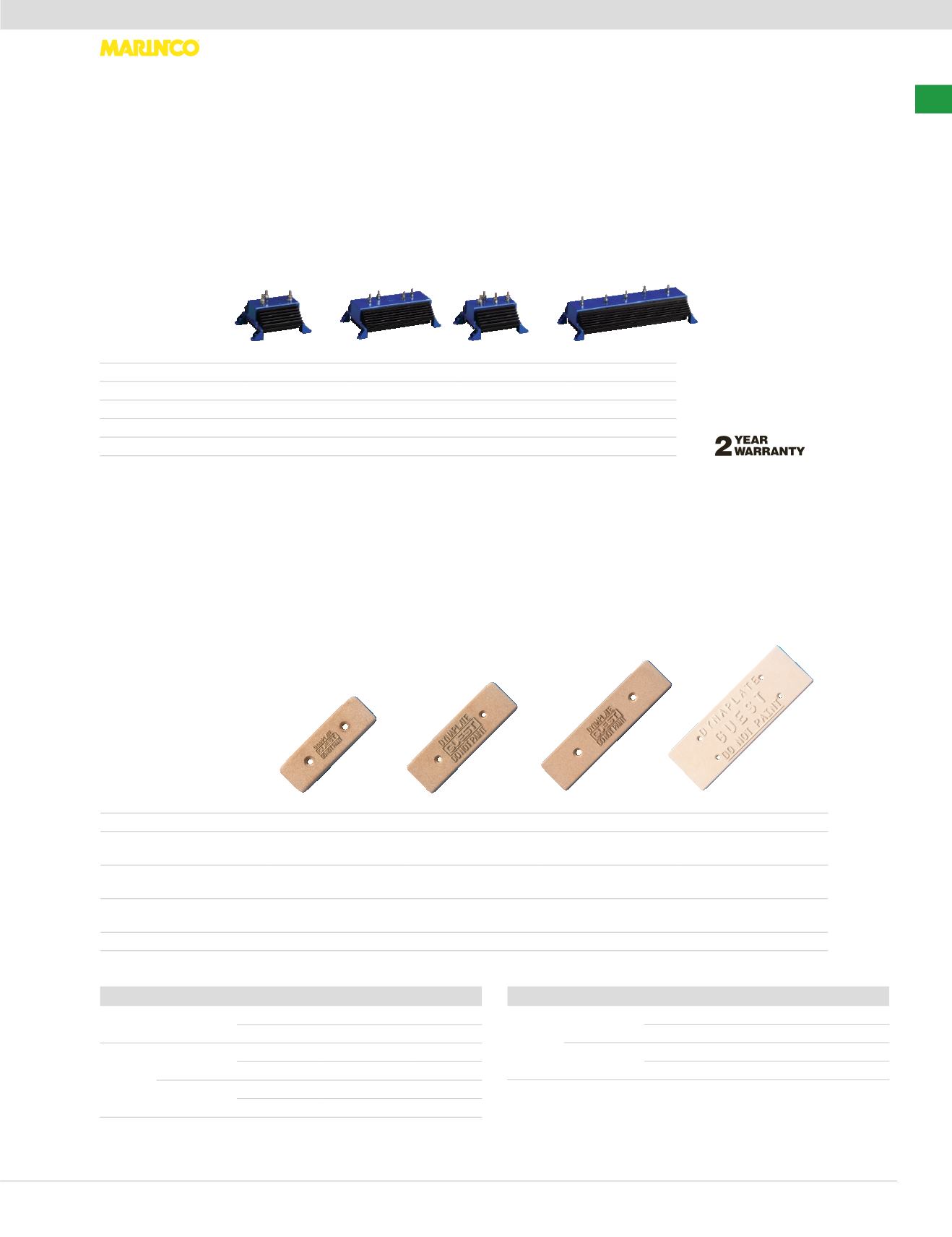

Battery Isolators
• Optimized heat sink design for maximum performance
• Minimized voltage drop across isolation barrier using Schottky type diodes
• Each output individually capable of carrying the full alternator load
• Fixed cable posts for secure connections
• Fully potted, marine grade construction
• Waterproof components for harsh environment performance - year after year
NOTE: If used on a 24V system, boat must be equipped with 24V DC alternator
Item #
2501
2502
2504
2532
Max. output alternator 70A
70A
70A
120A
Operation
12–48V
12–48V
12–48V
12–48V
Dimensions
5.4"x4.5"x2.6"
10"x5.5"x3.7"
5.4"x4.5"x2.6"
15"x5.5"x3.7"
# of alternators
1
2
1
2
# of battery banks
2
2
3
3
Manage
|
Circuit Protection & Panels
Manage:
Battery Isolators & Dynaplates
Dynaplates for Hull Bonding & Grounding
• Improves performance of electronics and reduces RF interference
• Offers the best path for hull bonding without long runs of copper foil
• Deters electrolysis and galvanic corrosion
• Sintered porous bronze sphere construction for maximum conductivity in a compact size
• Low drag, non-fouling shape
• Easy to clean with wire brush
• Conforms to ABYC standards
• Mounting hardware included
• Gold plated mounting bolt
• Bronze mounting nuts
• Copper washers
Standard
Large
Giant
Super
Item #
4006
4008
4012
4018
Use for
bonding and
grounding
bonding, grounding
and Loran use
bonding, grounding
and Loran use
SSB radio
Dimensions
6"x2"x.5"
152x51x13 mm
8"x2.5"x.5"
203x64x13 mm
12"x3"x.5"
305x76x13 mm
18"x6"x.5"
457x152x13 mm
Mounting holes
2-1/2" center
to center
4" center to center
6" center to center
9.875" center to center;
3" top to bottom
Weight
3 lbs / 1.4 kg
5 lbs / 2.3 kg
7 lbs / 3.2 kg
13 lbs / 5.9 kg
Part
Material
Use with:
Dimensions Item #
washer Bronze
4006/4008 1/4" x 20
P-11D03
4012/4018 3/8" x 16
P-11D04
bolt
Bronze
4006/4008 1/4" x 20
P-12D34
4012/4018 3/8" x 16
P-12D36
Bronze
Gold Plate
4006/4008 1/4" x 20
P-12D35
4012/4018 3/8" x 16
P-12D37
Part
Material
Use with:
Dimensions Item #
nut
Bronze
4006/4008 1/4" x 20
P-13A27
4012/4018 3/8" x 16
P-13A29
Bronze
Gold Plate
4006/4008 1/4" x 20
P-13A28
4012/4018 3/8" x 16
P-13A2A
Accessories for dynaplates
