Wiring System Diagrams

As more and more electronics and electrical accessories are added to your boat (autopilot, refrigeration, etc.) the use of

multi-batteries becomes a necessity. Guest components allow you to set up the system (from simple to complex) for your

boat’s application. The following diagrams are for use in identifiying and designing the right system for your boating needs.

Detailed installation schematics are available. Request Guest form I-21681.

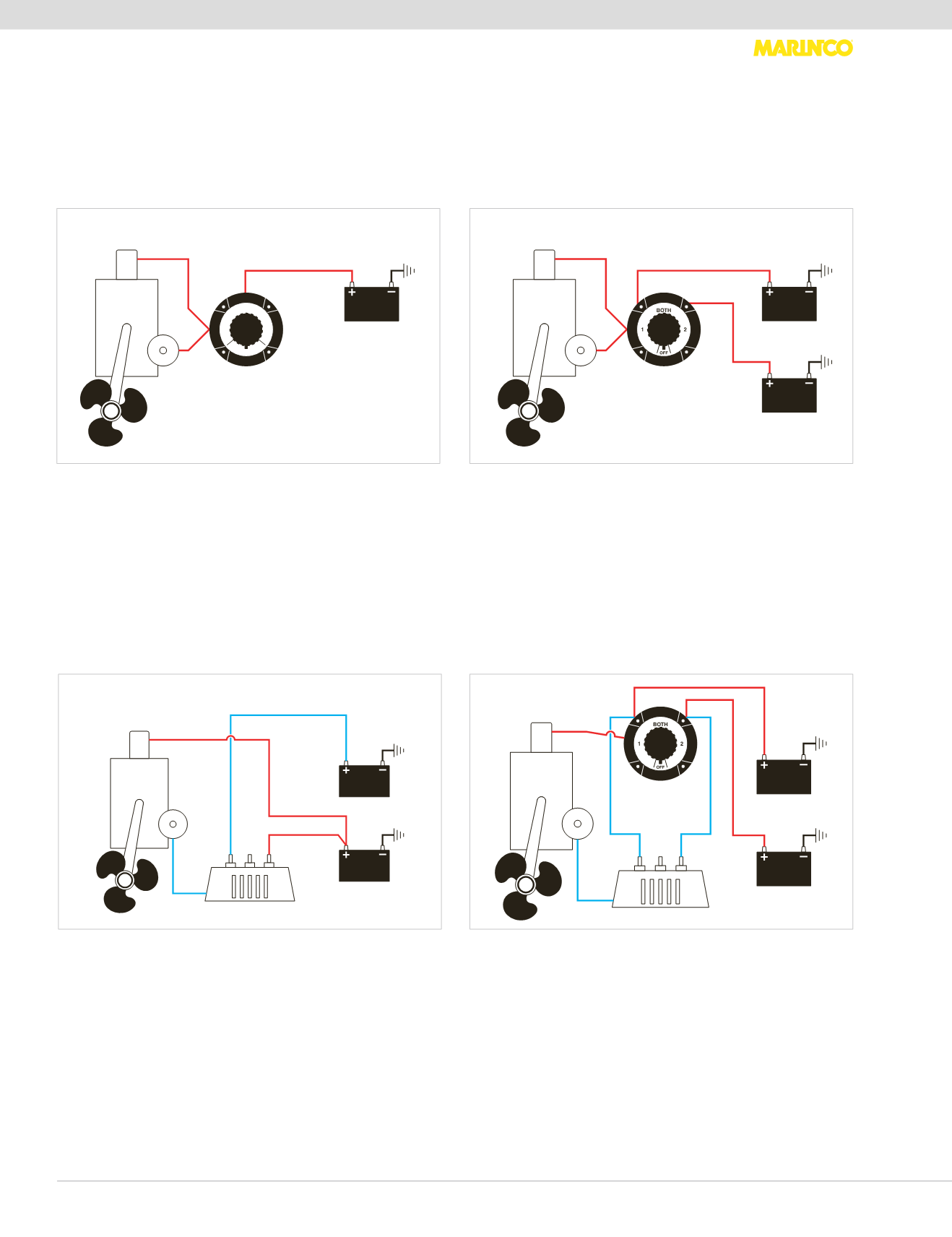

Single battery

Installation: To shut off all power at source. Recommended

installation by approved authorities.

Two battery with out isolator

Installation: To select a starter battery and ship service battery.

Manually isolates each battery, parallels both batteries for

emergency start, master disconnect, manually selects batteries

for charging.

12VOLT

BATTERY

ALT

STARTER

ON/OFF

SWITCH

ENGINE

1

12VOLT

BATTERY

12VOLT

BATTERY

ALT

STARTER

BATTERY

SELECTOR

SWITCH

ENGINE

1

2

2

1

Two battery with isolator

Installation: Isolator automatically selects lower charged battery

to be charged first. Full battery can't discharge to drained

battery. Dedicated system, no flexibility, no emergency parallel

or disconnect function.

Two battery with emergency parallel

Installation: An isolator automatically isolates each battery,

lower charged battery will automatically be charged first. Two

different size batteries can be used, larger for ship services,

smaller for engine cranking. Switch selects usage, master

disconnect, emergency parallel function.
