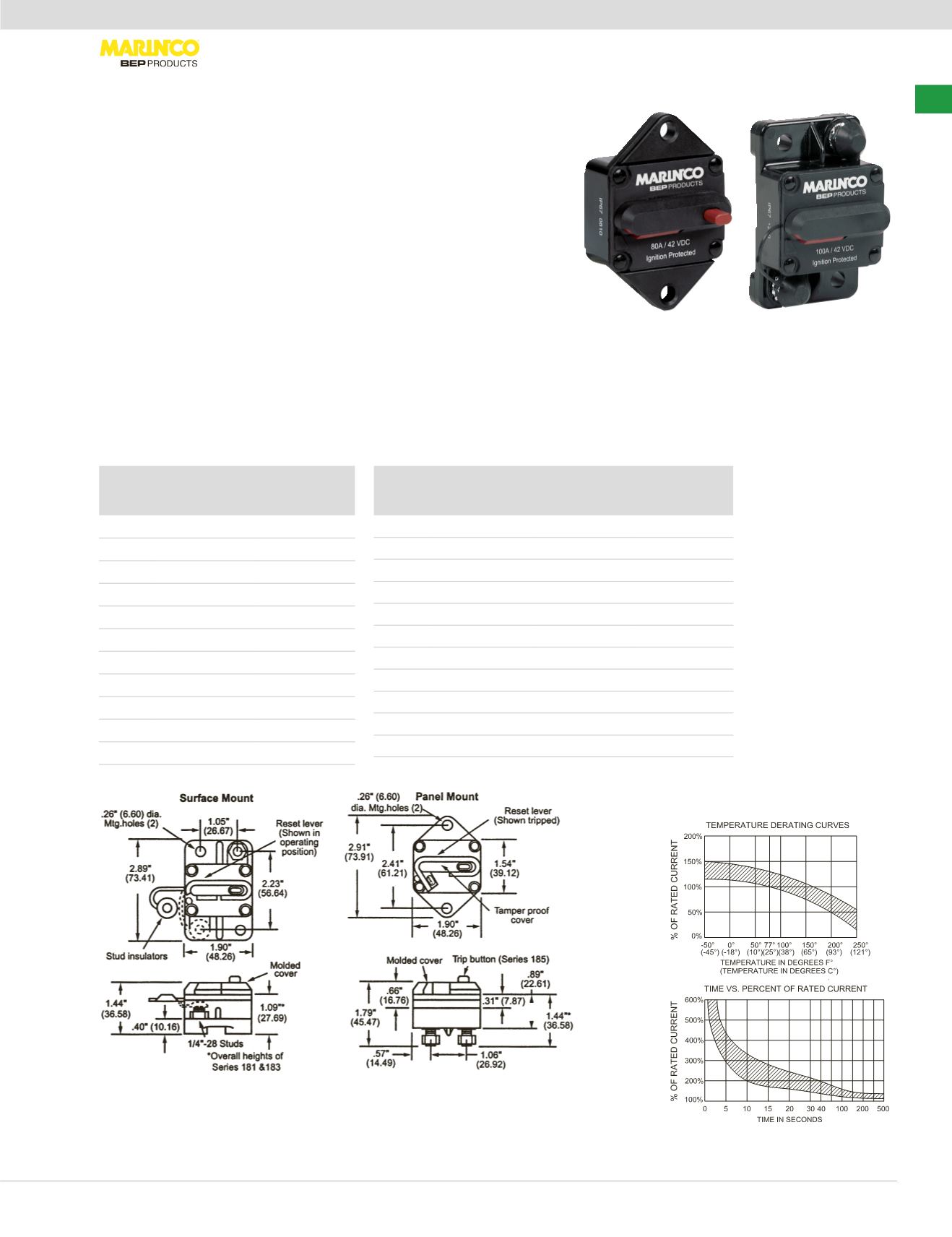

Manage:
Circuit Breakers
Heavy-duty Single Pole Thermal Type Breakers
•
Ratings:
30–150A; 30V DC, 3000A interrupt capacity
•
Operating Temperature:
-25°F (-32°C) to 180°F (82°C)
•
Storage Temperature:
-30°F (-34°C) to 300°F (149°C)
•
Applications:
Auxiliary and accessory circuits – trucks, buses, RVs and
marine applications, battery chargers and DC audio systems. Series 184
& 185 are sealed for engine compartment and bilge area applications.
•
Housing:
Thermoset plastic; UL rated 94VO; 311ºF (155ºC).
Stud insulators are provided on covered units with F (Surface Mount) bases;
tin plated copper studs, brass rivets and stainless steel locking nuts.
•
Mounting:
Panel or surface
•
Terminal Stud Torque:
50 in-lb (5.6Nm) max.
•
Indicator:
Series 184 & 185 have a unique reset mechanism providing
visible indication of tripped condition
•
Ingress Protection Rating:
IP67
•
Approvals:
Complies with SAEJ1625, J1171 and UL1500 (Ignition
protected) specifications.
Manual Reset
Rating
(A)
Panel
Mount
Surface
Mount
OEM #
OEM #
30
184030P-01-1 184030F-01-1
40
184040P-01-1 184040F-01-1
50
184050P-01-1 184050F-01-1
60
184060P-01-1 184060F-01-1
70
184070P-01-1 184070F-01-1
80
184080P-01-1 184080F-01-1
90
184090P-01-1 184090F-01-1
100 184100P-01-1 184100F-01-1
120 184120P-01-1 184120F-01-1
135 184135P-01-1 184135F-01-1
150 184150P-01-1 184150F-01-1
Switchable Reset
Rating
(A)
Surface
Mount
Panel
Mount
Surface
Mount
Item #
OEM #
OEM #
30
—
185030P-01-1 185030F-01-1
40
—
185040P-01-1 185040F-01-1
50
185050F/DSP
185050P-01-1 185050F-01-1
60
—
185060P-01-1 185060F-01-1
70
—
185070P-01-1 185070F-01-1
80
185080F/DSP
185080P-01-1 185080F-01-1
90
—
185090P-01-1 185090F-01-1
100 —
185100P-01-1 185100F-01-1
120 —
185120P-01-1 185120F-01-1
135 —
185135P-01-1 185135F-01-1
150 —
185150P-01-1 185150F-01-1
Temperature and Current Rating
