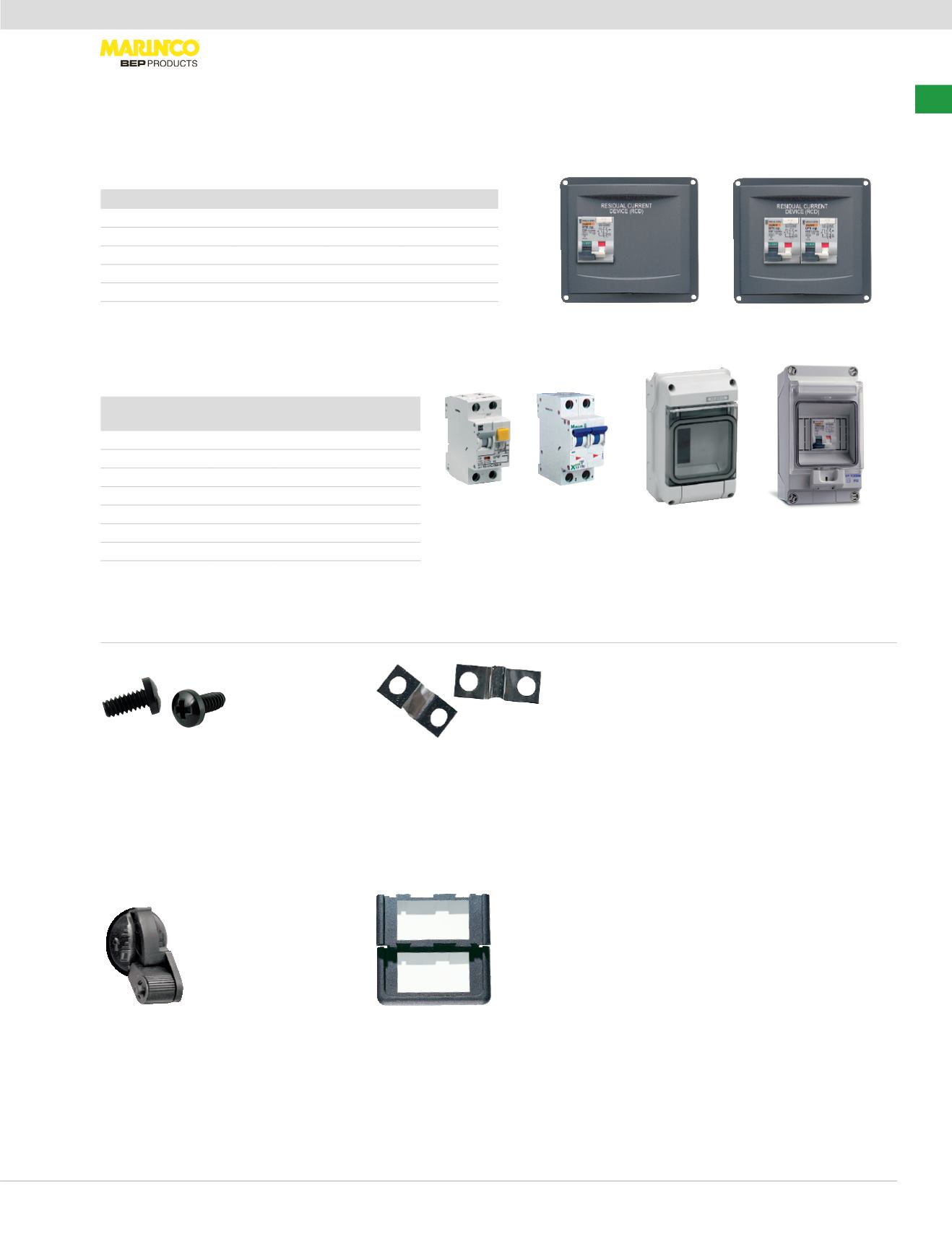

For installations in Australia and New Zealand to comply with AS/NZ3004 an approved double pole mains circuit breaker must
be mounted upstream of the BEP™ Control Panel in the form of a RCD or MCB. The MCB-3WENC is an enclosure with IP65 rating.
The enclosure and CB is ordered separately. The Shore Fix is already assembled, no additional item parts need to be ordered.
Item #
Rating (A)
HxWx2.5" HxWx65 mm
900-RCD-16A
16
4.5"x5"
115x127 mm
900-RCD-1X16-32A
32
4.5"x5"
115x127 mm
900-RCD-2X16A
16x2
4.5"x5"
115x127 mm
900-RCD-2X32A
32x2
4.5"x5"
115x127 mm
900-RCD-32A
16x1, + 32x1 4.5x5"
115x127 mm
Cutout size - 3/8" (10 mm) inside all external edges
RCD Panels
We supply two Residual Current Device (RCD) ratings (16 & 32 A).
Due to the difference in style of the RCD’s, these panels are made
to be mounted separately from the main AC panel.
Item #
Rating
(A)
Type
RCD16A30MA
16
Residual CB Overload
RCD32A30MA
32
Residual CB Overload
RCD63A
63
Residual CB Overload
MCB16A
16
Miniature CB
MCB32A
32
Miniature CB
MCB63A
63
Miniature CB
124001000
16
Shore Fix 30 mA
CB Options
• 230 volt
900-RCD-16A
6.3"x3.6"x3.5"
160x92x90 mm
MCB-3WENC
7.87"x4.33"x4.53"
200x110x115 mm
124001000
RCD
(see chart)
MCB
(see chart)
900-RCD-2X16A
Mounting Screws
• Black
• Nylon
• 5-32"x 5/16" (4x7.9 mm)
• Used in mounting circuit breakers to
electrical control panel
Item # 553041
Modular Brackets
• Black
Item # 554000
end
Item # 554001
middle
Line-to-Line Jumper
• Used in terminal blocks with 5/8"
(15.9 mm) between holes
• 100 amps total capacity
• Pkg qty 5
Item # 553021
Manage:
Circuit Breaker Accessories
Handle Lock
Image shows “handle lock” as used in
all our battery management panels for
essential CBs to prevent accidental or
unintended actuation of essential circuits
CB’s from either the “on” or “off” position.
(ordered separately)
Item # 121-710-1101/1
