PRIMARY VOLTAGE — 2 X 117V 50/60 Hz (CONT.)
Part Number
Nominal Power
(VA)
Secondary Voltage
(Volts)
Secondary Current
(Amps)
Core Loss
(Watts)
Copper Loss
(Watts)
OD x H
Inches (mm)
Weight
Lbs. (kg)
Mounting
Hardware
AA53002015
300
2 x 15
10
22.0
1.70
4.6 x 2.6 (117 x 66)
5.7 (2.6)
1/4"
AA53002018
2 x 18
8.3
22.0
1.70
AA53002024
2 x 24
6.2
22.0
1.70
AA53002030
2 x 30
5
22.0
1.70
AA53002038
2 x 38
5
22.0
1.70
AA53002117
2 x 117
1.3
22.0
1.70
AA53752018
375
2 x 18
10.4
27.0
2.00
5.4 x 2.0 (137 x 51)
6.7 (3)
1/4"
AA53752024
2 x 24
7.8
27.0
2.00
AA53752030
2 x 30
6.3
27.0
2.00
AA53752038
2 x 38
4.9
27.0
2.00
AA53752117
2 x 117
4.9
27.0
2.00
AA54602024
460
2 x 24
9.6
31.0
2.40
5.4 x 2.6 (137 x 66)
7.9 (3.6)
1/4"
AA54602030
2 x 30
7.7
31.0
2.40
AA54602038
2 x 38
6
31.0
2.40
AA54602117
2 x 117
2
31.0
2.40
AA56252024
625
2 x 24
13
36.0
3.10
5.5 x 3.2 (140 x 81)
9.5 (4.3)
1/4"
AA56252030
2 x 30
10.4
36.0
3.10
AA56252033
2 x 33
9.5
36.0
3.10
AA56252038
2 x 38
8.2
36.0
3.10
AA56252117
2 x 117
2.7
36.0
3.10
AA58002024
800
2 x 24
16.7
45.0
3.80
6.4 x 2.7 (163 x 69)
12.3 (5.6)
5/16"
AA58002030
2 x 30
13.3
45.0
3.80
AA58002038
2 x 38
10.5
45.0
3.80
AA58002048
2 x 48
8.2
45.0
3.80
AA58002117
2 x 117
3.4
45.0
3.80
AA59902024
990
2 x 24
20.6
45.0
3.80
6.5 x 3.0 (165 x 76)
15.2 (6.9)
5/16"
AA59902042
2 x 42
11.8
45.0
3.80
AA59902055
2 x 55
9
45.0
3.80
AA59902117
2 x 117
4.2
45.0
3.80
Note:
Electrical measurements @ 20°C ambient temperature. All data subject to change without prior notice.

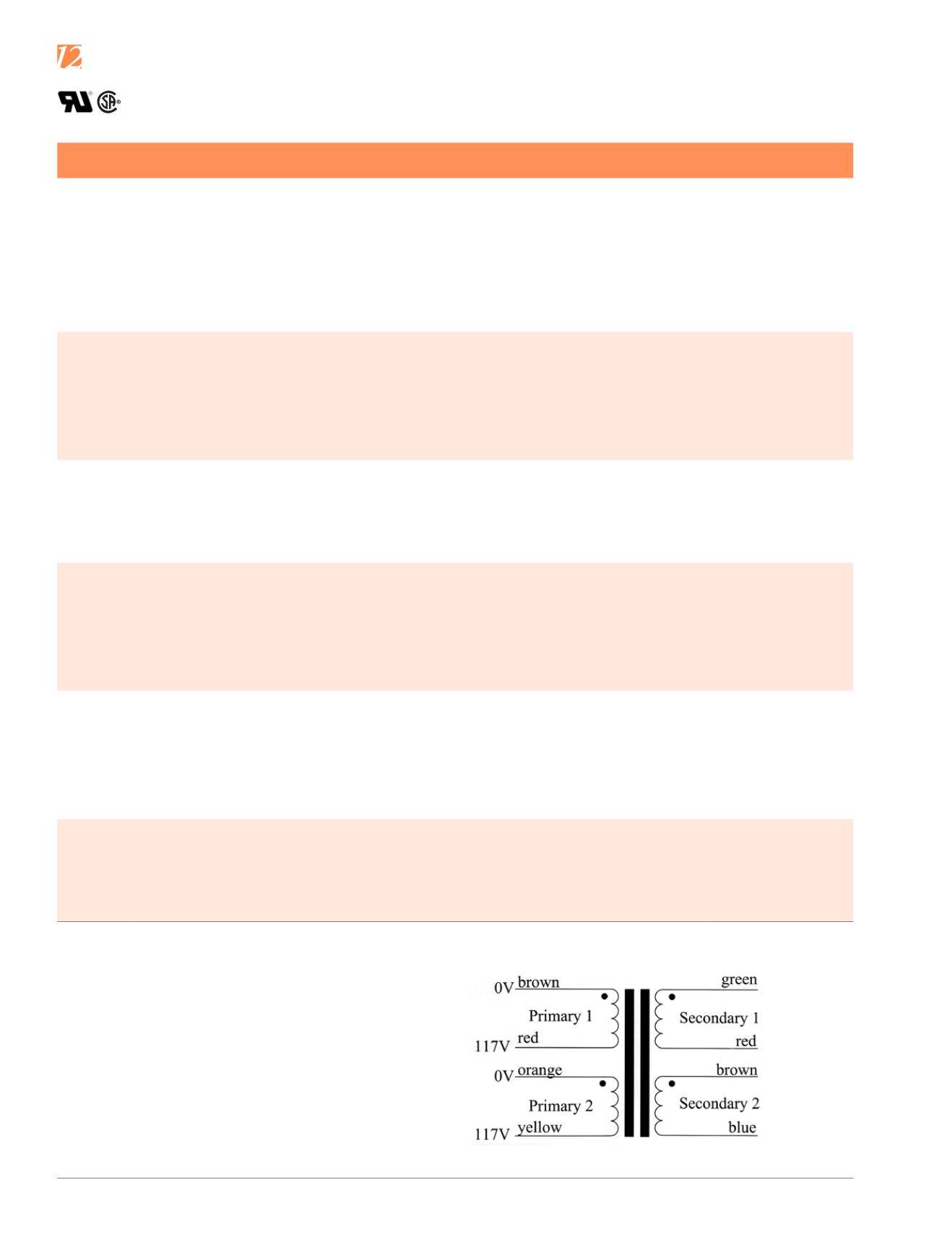

Winding Configurations With Color Codes
Dual 117V 50/60Hz Primaries w/ Dual Secondaries
Multiple primaries must be connected in series or parallel.
